Product Overview
The Q3P03 is a dust-resistant slip ring with a 304 stainless steel housing. It features three channels: two for air flow and one for dust removal. It has a designed speed of 250 rpm and a maximum pressure of 1 MPa. It has an IP51 protection rating.
Key Features
1. Capable of conveying both gas and solid powders.
Provides two air channels for conventional pneumatic conveying or positive pressure dust removal;
A dedicated dust channel safely and reliably conveys solid media such as powders and granules.
2. Flange Design
Adopts a 304 stainless steel housing, which is corrosion-resistant and wear-resistant, suitable for harsh operating conditions.
Maximum pressure resistance is 1 MPa, ensuring stable operation under high-pressure conditions.
3. Excellent protection and mechanical properties.
IP51 protection rating effectively protects against dust and vertical water impact.
Maximum speed of 250 rpm meets medium- and high-speed rotary conveying needs.
4. Wide range of applications.
Widely used in rotary gas-solid mixed conveying applications in powder conveying systems, industrial dust removal equipment, material handling machinery, food processing, and pharmaceutical industries.
Technical Parameters
| Parameter | Value |
| Transmission medium | Gas (liquid available by customization) |
| Working life | 20 million revolutions (reference value) |
| Maximum speed | 250 RPM |
| Pressure range | 1.0MPa |
| Operating temperature | -30℃ to +80℃ |
| Operating humidity | 0-85% RH |
| Protection level | IP51 |
| Shell material | Stainless steel 201 |
| Rotational torque | 0.5N.m (reference value, torque increases with channel count) |

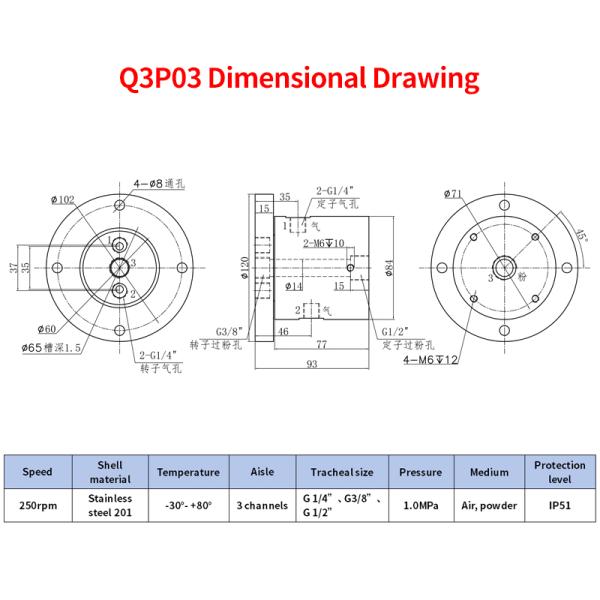

Product Dimensions

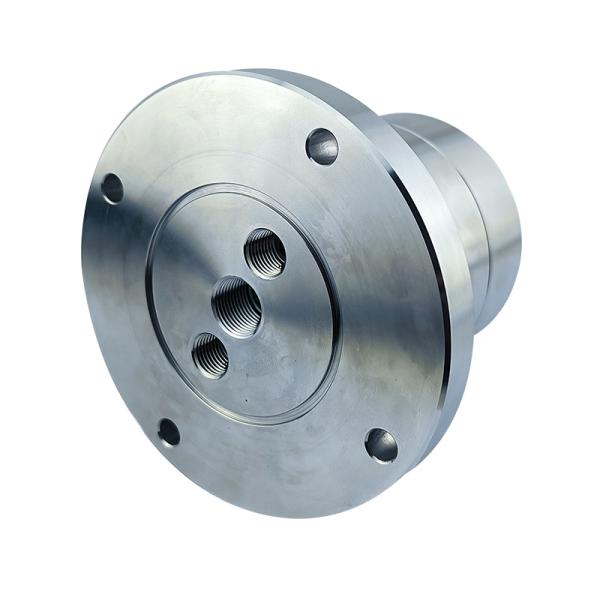

Product images
Application Scenarios
Ideal for applications requiring 360-degree continuous rotation with uninterrupted gas pressure, vacuum, power, and signal transmission. Common uses include:
- Non-standard automation equipment
- Lithium battery and mobile phone testing equipment
- Laser equipment and coating machines
- Packaging film equipment for soft-pack batteries
- Electronic semiconductor industrial automation
- Optoelectronic display manufacturing equipment
- Rotary worktables and wind power equipment
- AGV lifting platforms and capsule filling machines
